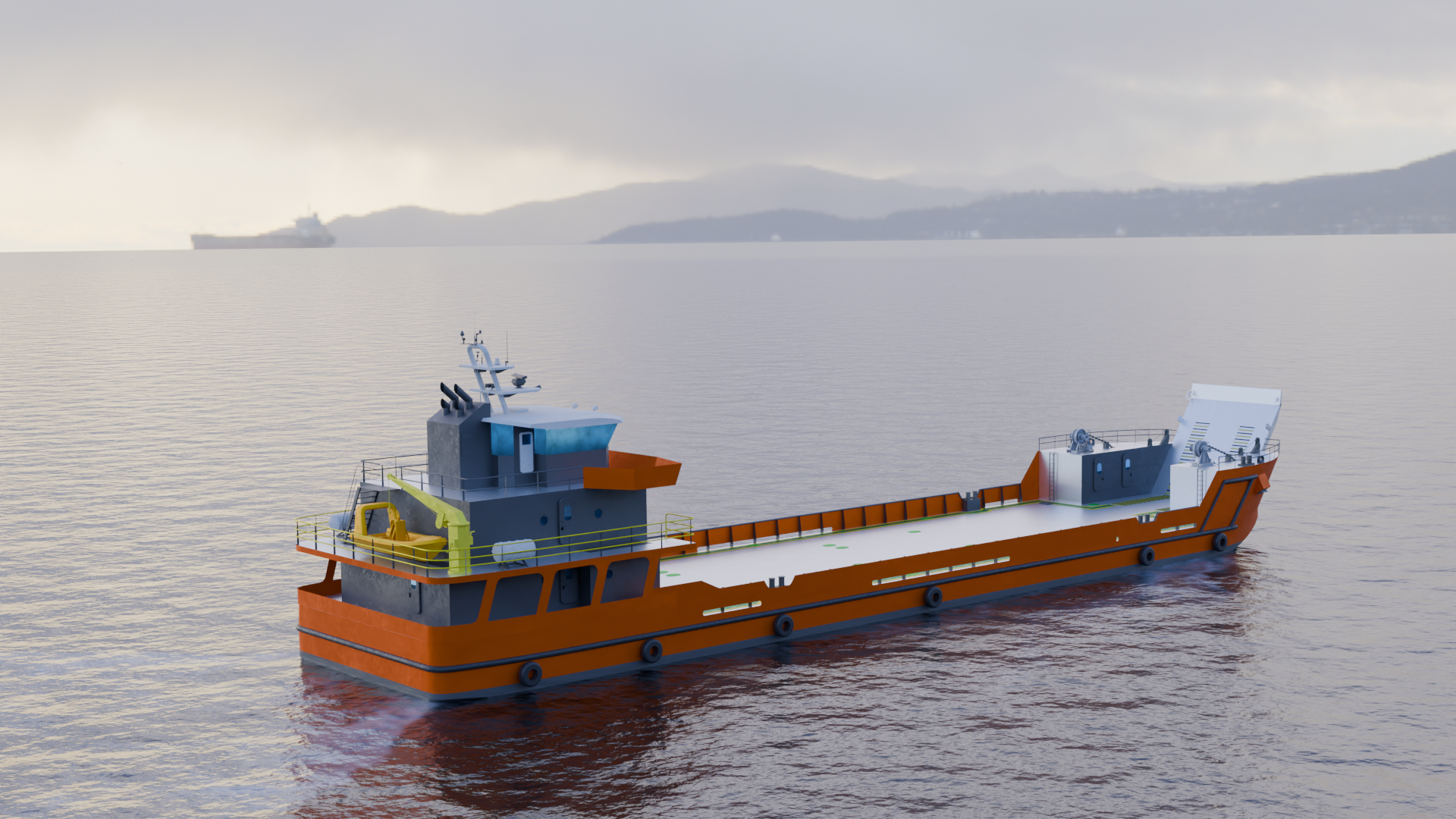

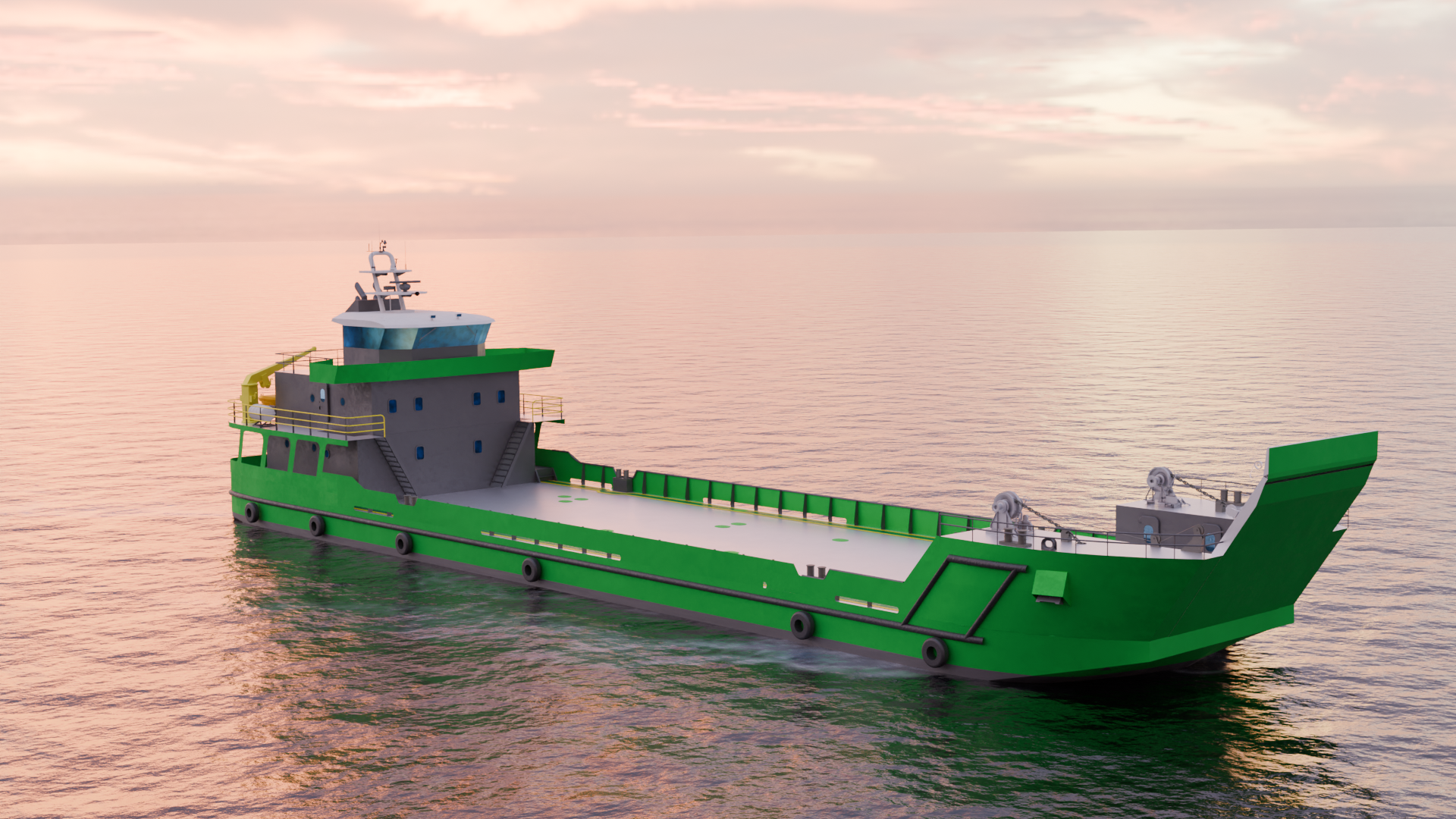

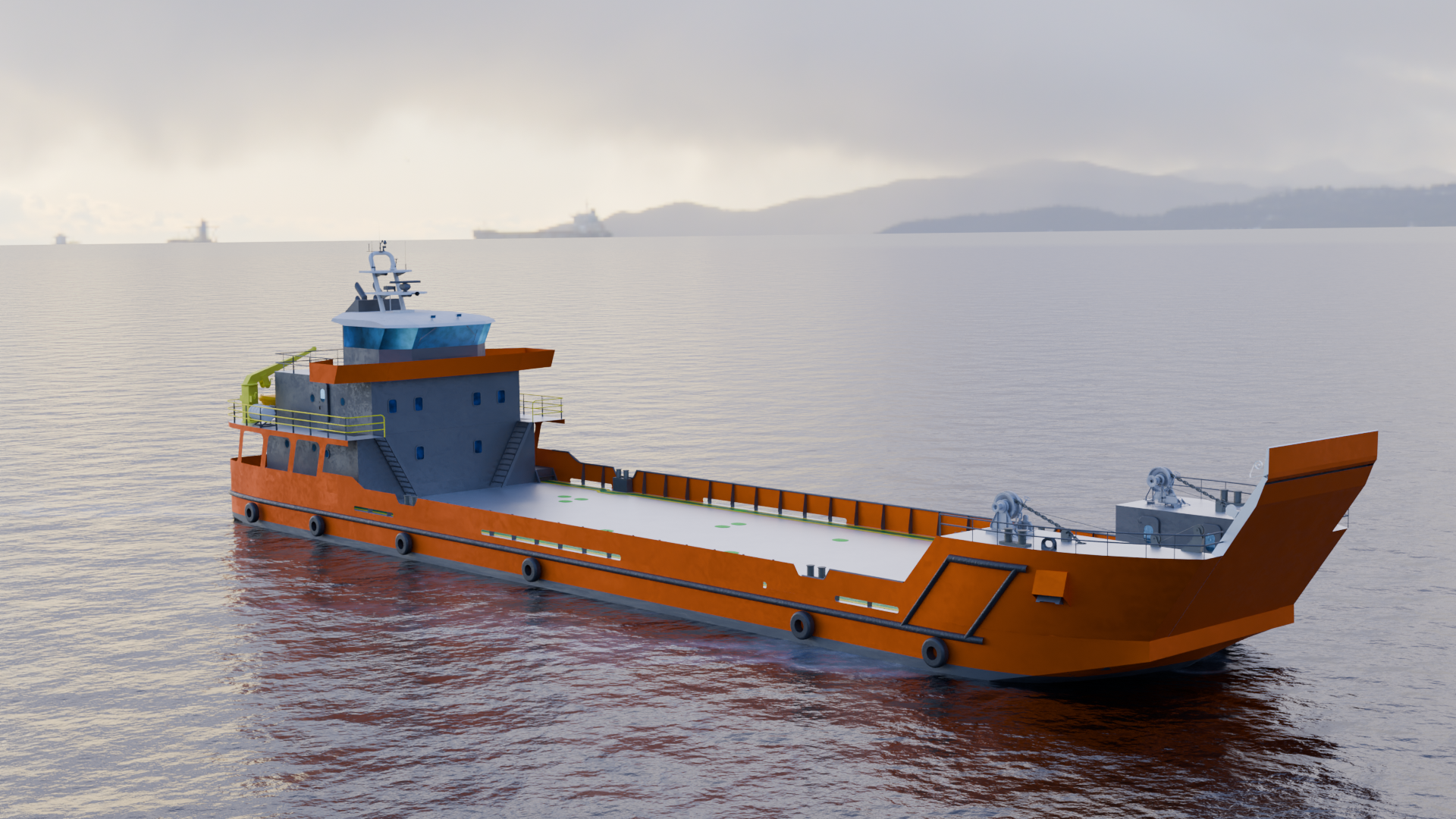

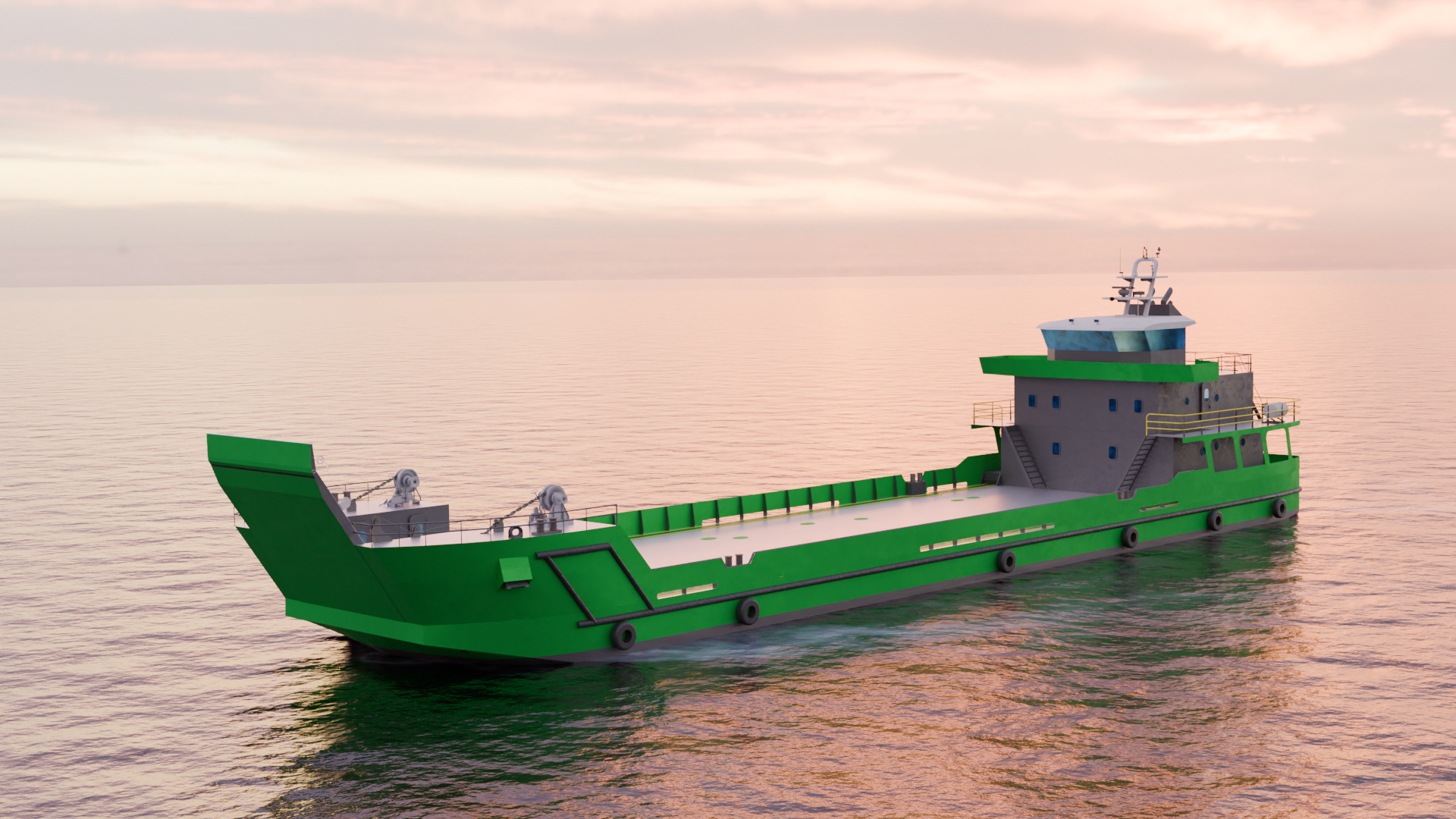

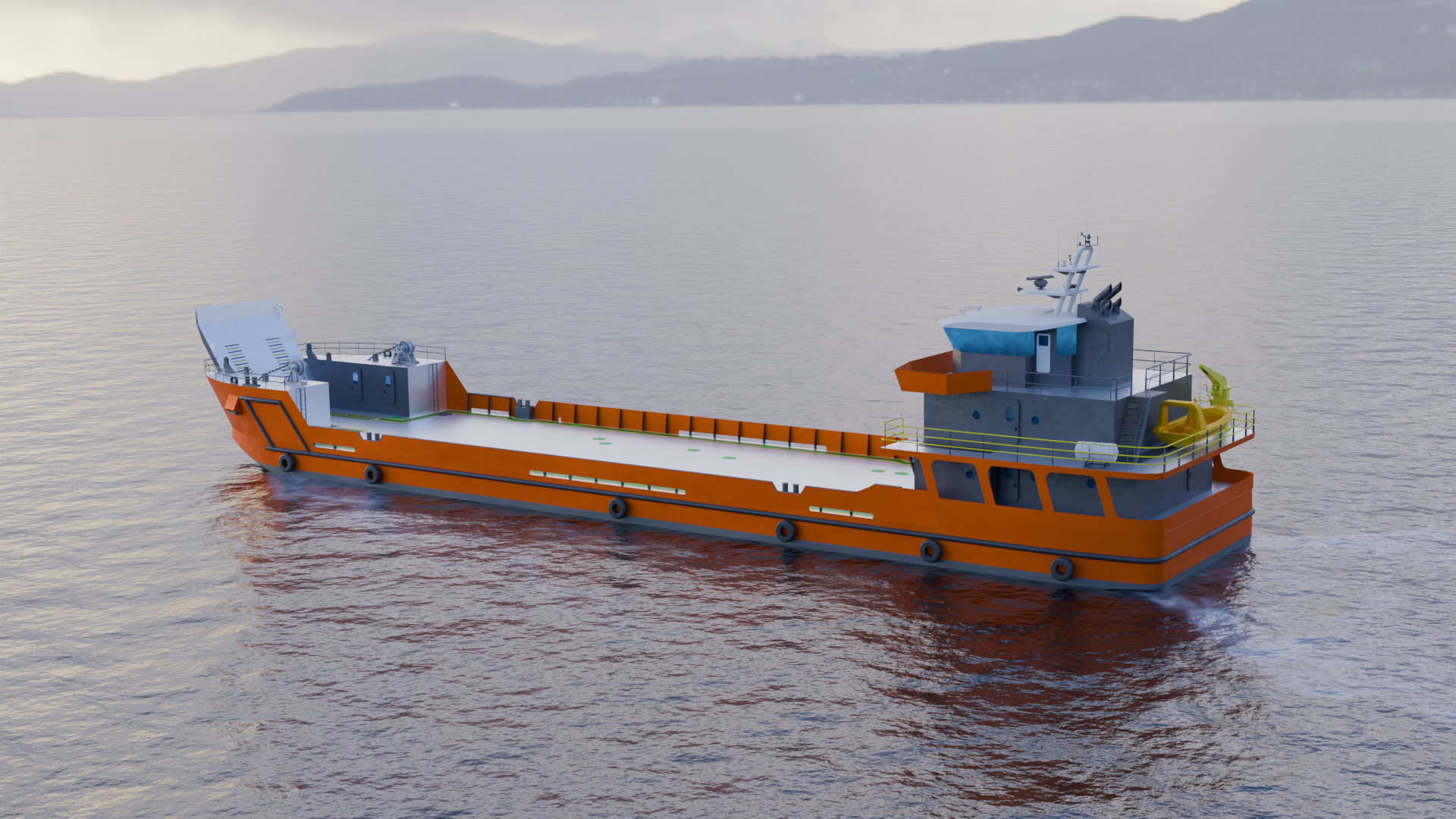

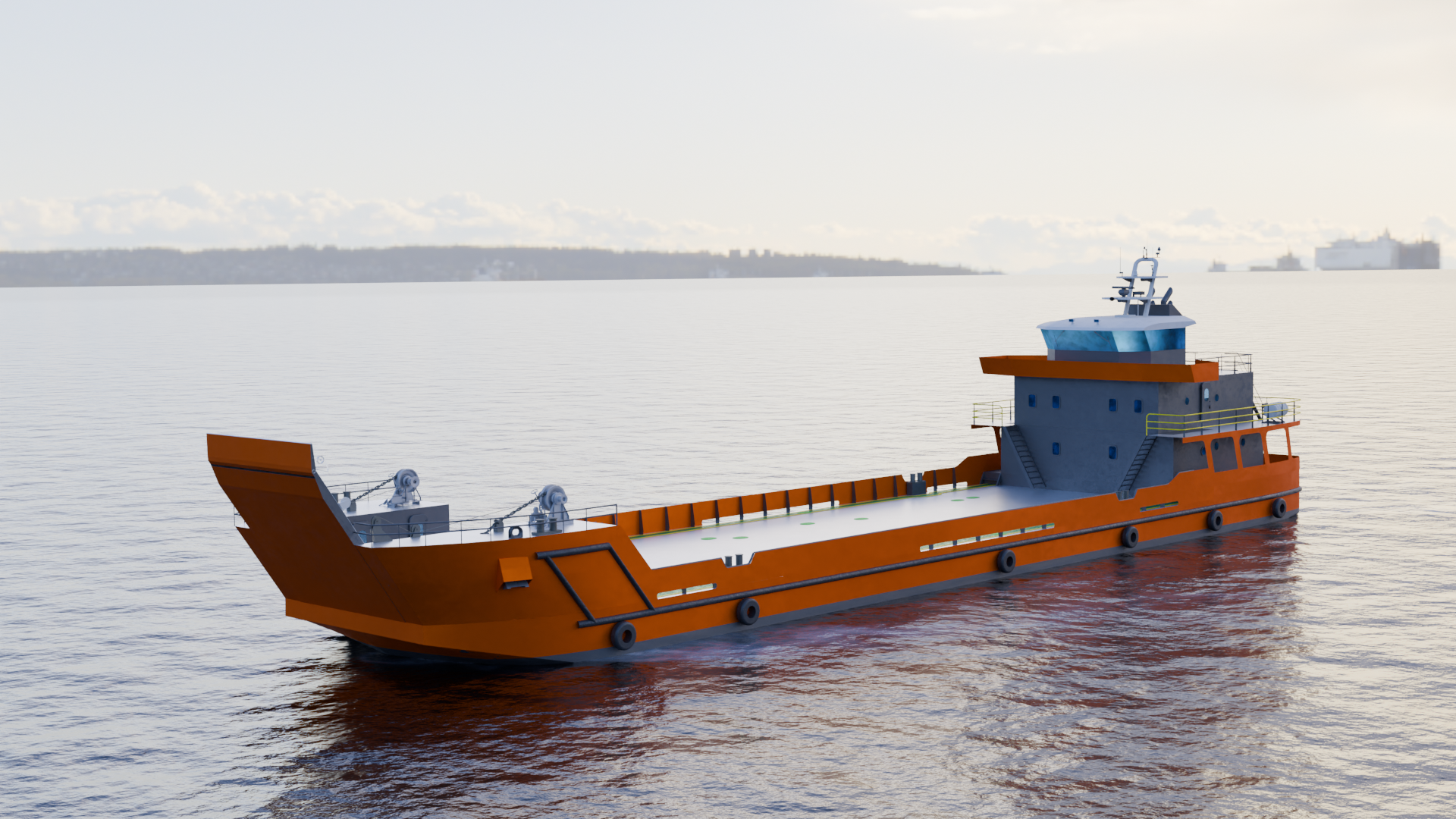

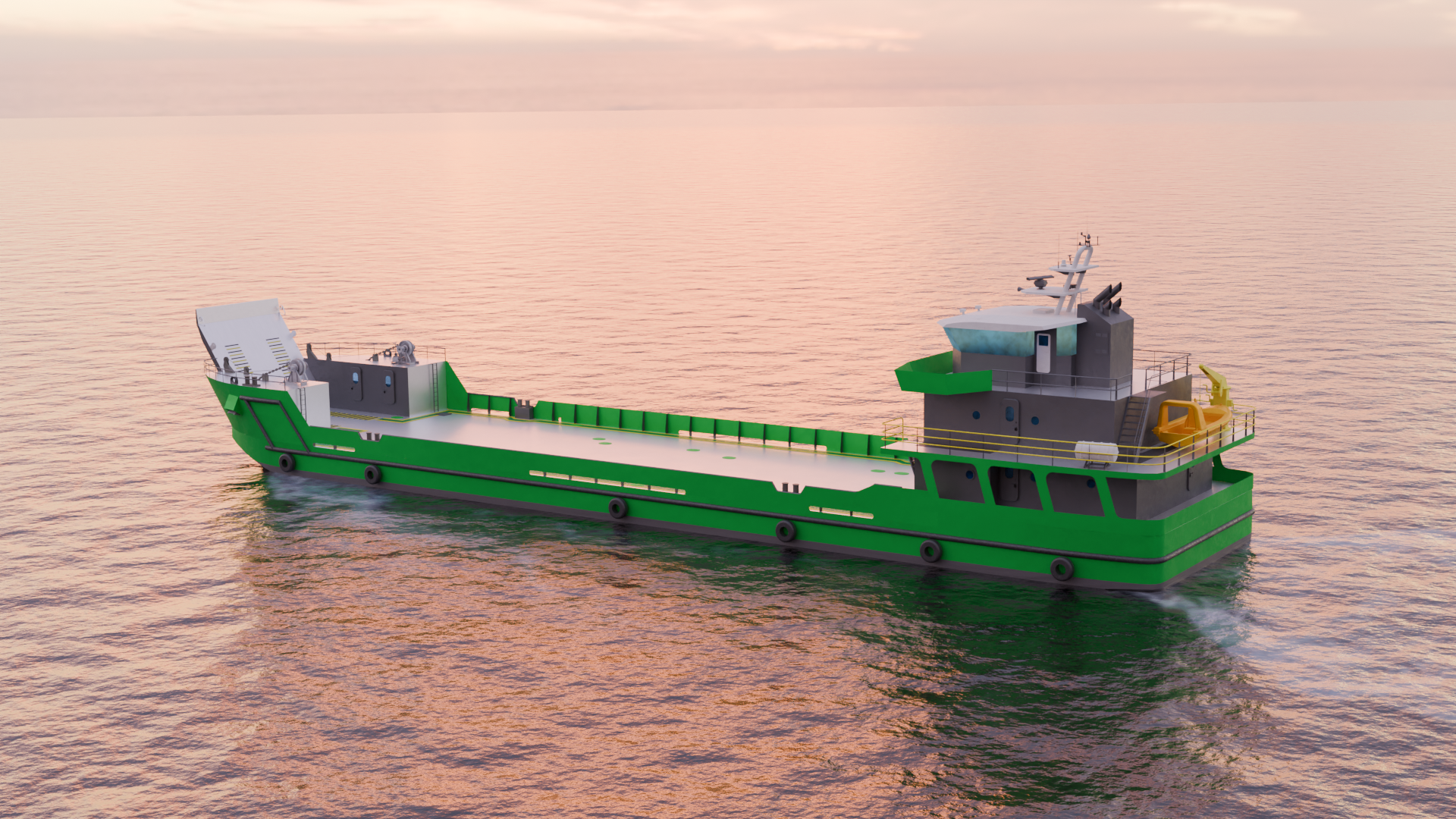

CSA Marine’s 48-meter Landing Craft is a robust and mission-ready vessel, purpose-built to meet the logistical and operational demands of modern maritime environments. Extending the capabilities of our proven 45-meter class, this larger variant offers increased payload capacity, greater range, and enhanced onboard systems — all while maintaining the shallow-draft access and direct beach landing functionality that define our landing craft line. Crafted for resilience in coastal and near-shore operations, the 48-meter platform is optimized for the transportation of heavy cargo, vehicles, and essential equipment, even in austere or undeveloped regions. A reinforced bow ramp and spacious roll-on/roll-off deck allow for rapid deployment and turnaround, supporting everything from military missions and humanitarian aid to commercial supply chains and infrastructure support in remote areas.
Built from high-grade marine steel with corrosion-resistant finishes, the vessel ensures long-term operational integrity in harsh conditions. The advanced propulsion and steering systems enable precise maneuverability in restricted waters, while onboard systems are engineered for high reliability, minimal maintenance, and extended operational readiness.
Length: 48.00 m
Beam: 12.10 m
Draft: 2.10 m
Complement: 12 person
Class: Inland Vessel
Class Notation: C, HULL, MACH,
MON,P, GENERAL CARGO SHIP,
OCEAN GOING
Speed: 12 knots
Ramp: 6.8L x 6.5B, Electrical Winch Driving
Container Capacity: 16 TEU
Anchor Windlass: 5 Ton, 9m/min
Oily Water Treatment: 0.1m³/hr Taiko Kikai
Life Saving Equipment: SOLAS Standard
Main Engine: 2 x Cummins K-38
Total Power: 2 x 800 HP
Propeller: 2 x 1.3 m with Kort nozzle
Gearbox: ZF / N co / Rein jest
Generator: 3 x 78 kW Cummins
Bow Thruster: 1 x 80 kW (ZF / Hydro Master)
Double Bottom: 10 mm
Main Deck: 10 mm
Hull Plate: 10 mm
Bilge Plate: 8 mm
Side Shell: 8 mm
Transom: 8 mm
Bulwark: 8 mm
Poop Deck: 8 mm
Tank Top: 6 mm
Emergency Fire Pump: 1 pc
L.O. Transfer Pump: 1 pc
Ballast/Ballast Pump: 1 pc
Fuel Oil Transfer Pump: 1 pc
Dirty Oil Pump: 1 pc
Fire Pump: 1 pc
1 x Magnetic Compass 6”
2 x Sets Radar X Band FURUNO 1518
1 x Sea Map
2 x Binocular
1 x Clear View Screen
1 x set GPS Satellite FURUNO GP-39
1 x set GPS Plotter SAMYUNG N700
1 x set Echo Sounder FURUNO FCV-688
1 x set Navtex FURUNO NX 300
1 x set Inmarsat C FURUNO FALCOM 18
1 x AIS Class A SAMYUNG SAS-70
1 x set Autopilot
1 x set SSB Radio
2 x sets VHF Radio
6 x set Two-way VHF Radio Telephone / Portable Transceiver
1 x set Intercom (6 units)
1 x sets Sound Power Telephone









At CSA Marine, we can build your vessels at our own facilities with precision and efficiency. However, if your operational strategy or budget calls for local construction, we’re here to help. Our team is fully equipped to support vessel production at your preferred location, offering technical expertise, on-site assistance, and tailored co-production models. With a proven track record of international collaboration, we deliver flexible solutions that fit your specific needs.
