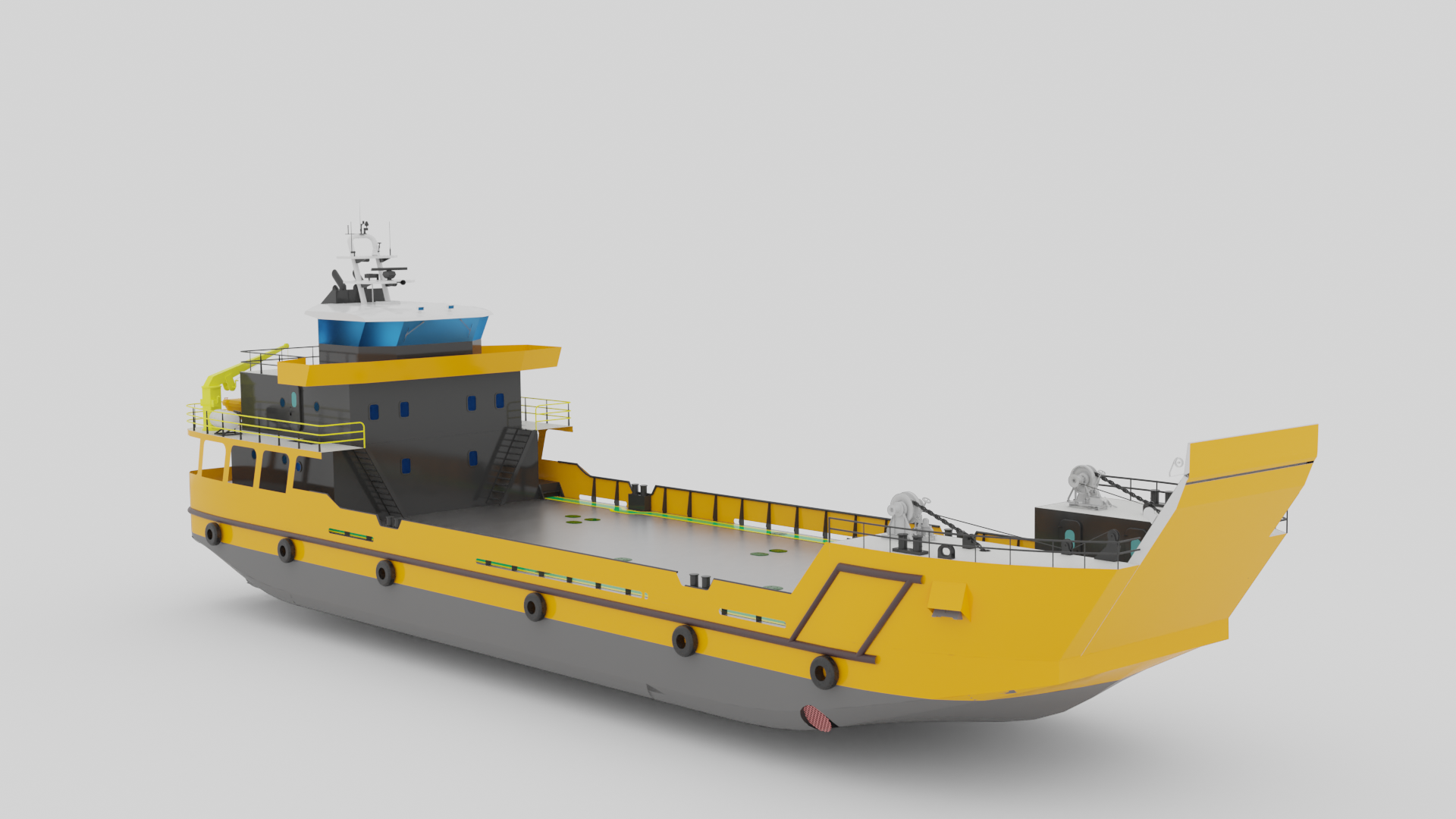

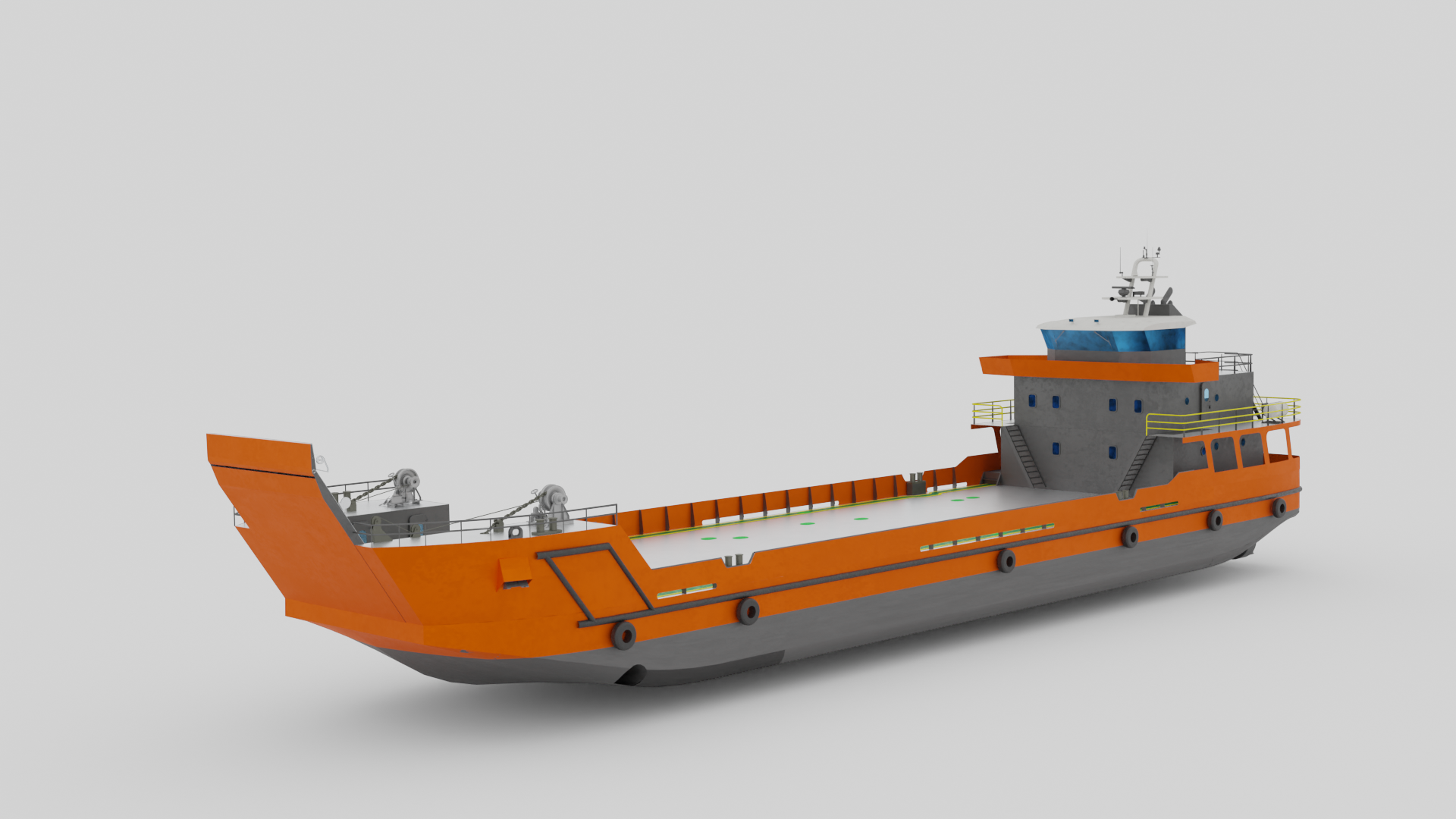

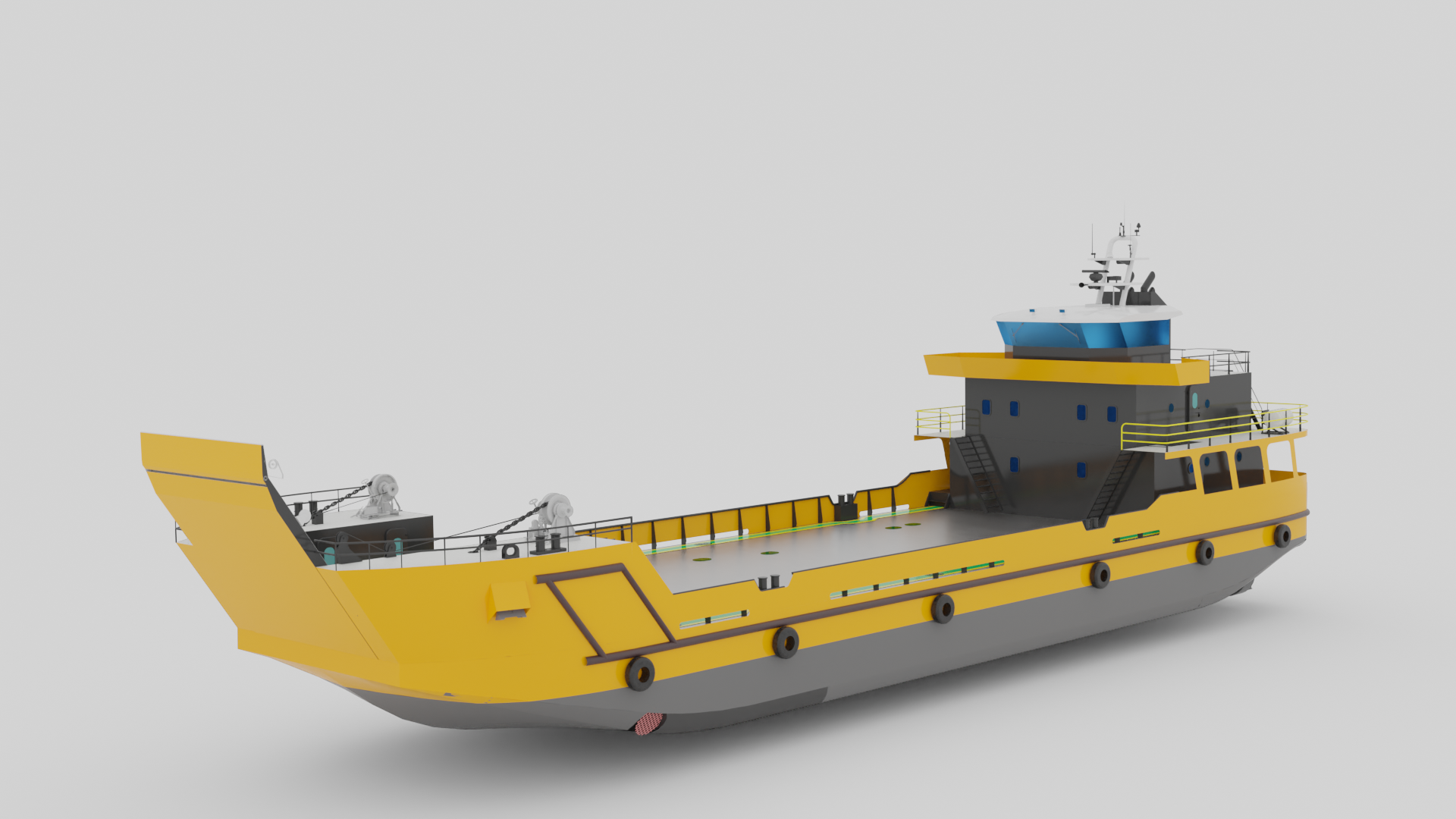

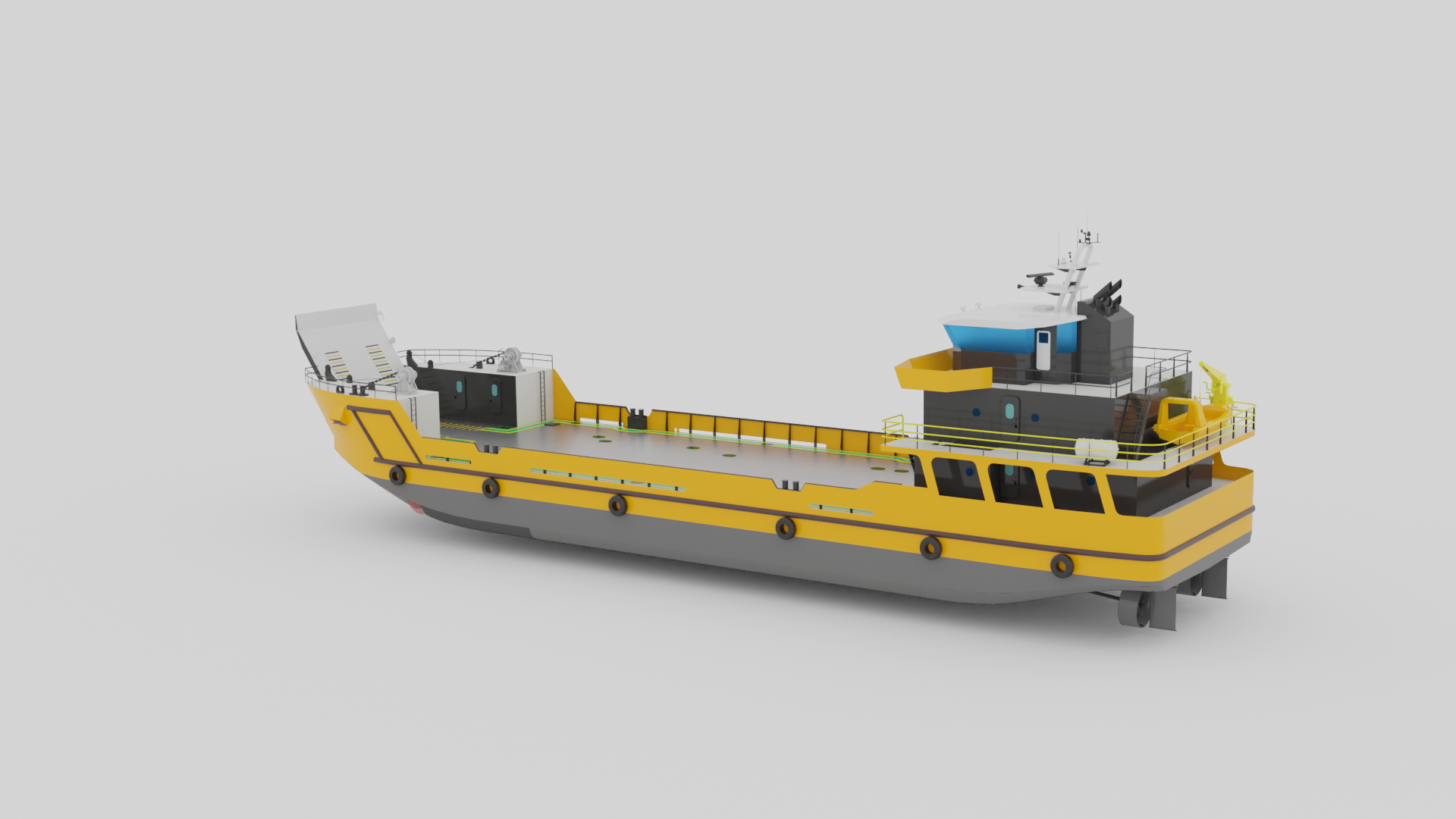

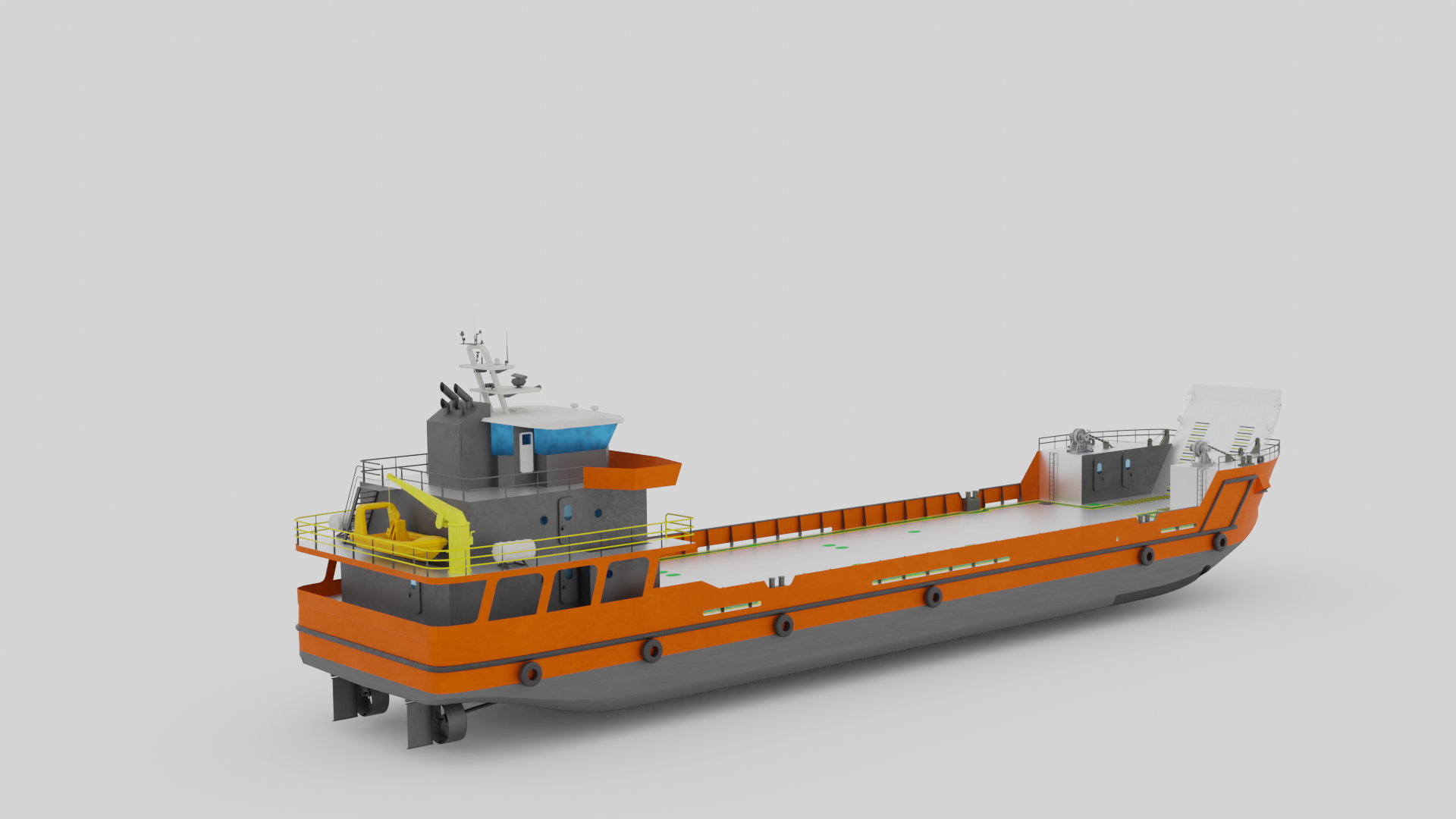

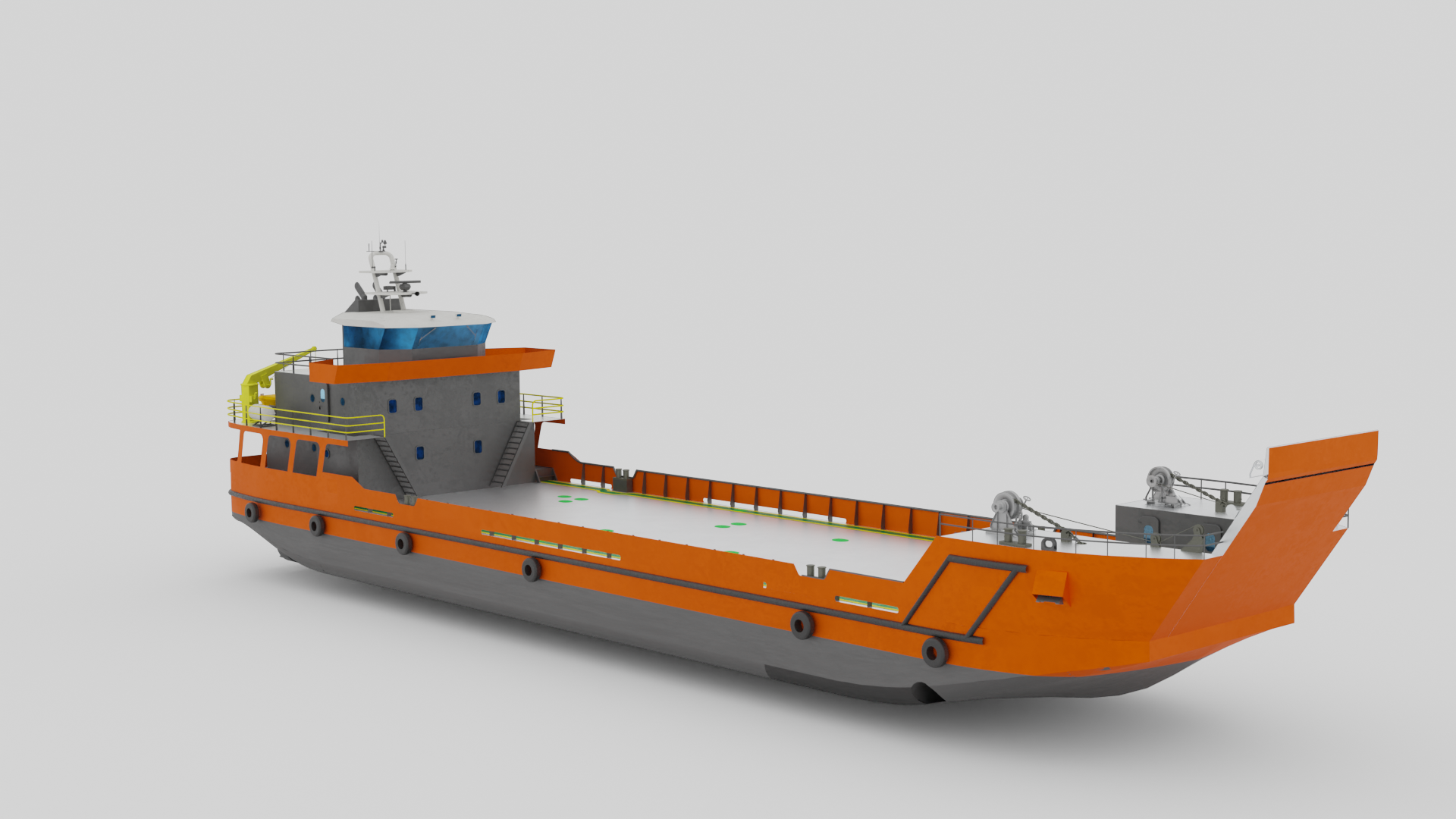

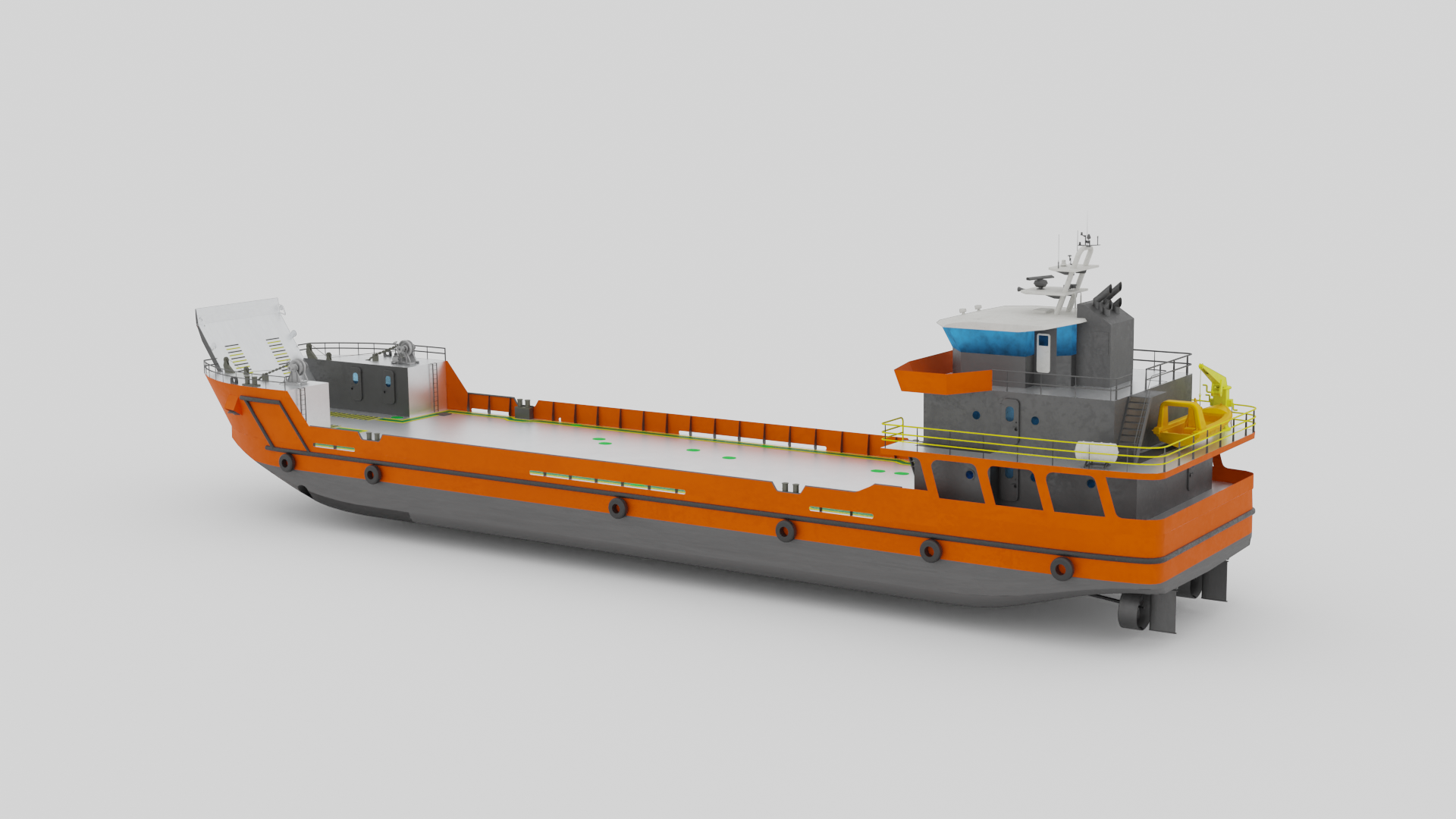

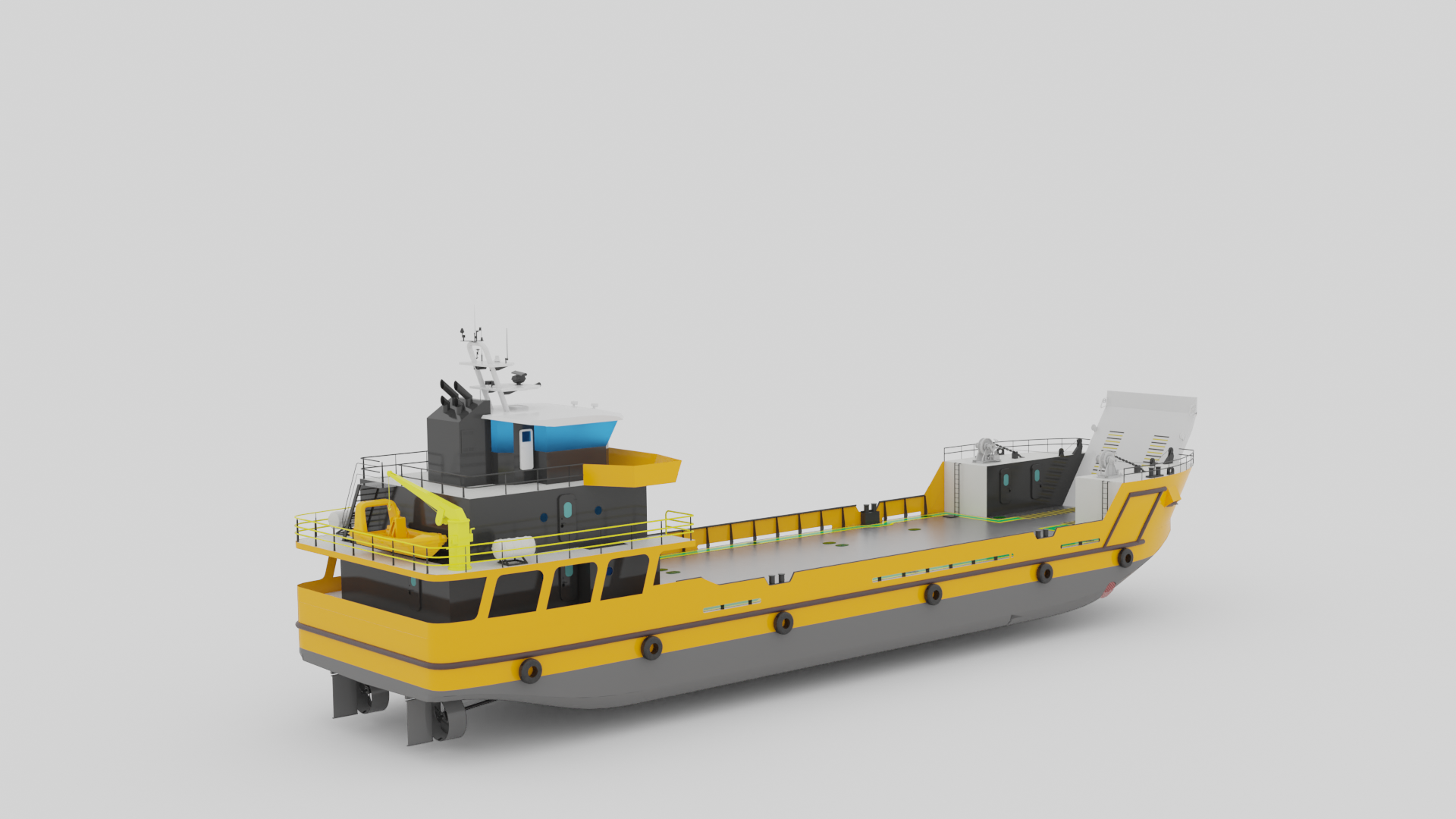

55 METER LCT

Overview

The 55-meter Landing Craft by CSA Marine represents the pinnacle of coastal transport engineering — a high-capacity, ocean-capable workhorse designed to deliver superior performance in extended missions and demanding environments. As the largest vessel in our landing craft series, it offers expanded range, enhanced cargo volume, and increased endurance, making it an ideal choice for heavy-duty logistical operations and sustained offshore deployments. Purpose-built with shallow-draft capability and a reinforced bow ramp, the 55-meter platform enables direct beach landings and efficient roll-on/roll-off operations, even in rugged, infrastructure-limited locations. Its expansive deck area and reinforced structure are tailored for transporting large vehicles, construction machinery, containers, and vital humanitarian or military supplies. Constructed from high-tensile marine-grade steel with advanced corrosion protection systems, this vessel is engineered to withstand prolonged exposure to harsh maritime conditions. A high-performance propulsion system ensures exceptional maneuverability despite the vessel’s size, while state-of-the-art onboard systems are optimized for fuel efficiency, operational uptime, and minimal maintenance requirements.

From large-scale amphibious operations and strategic inter-island transport to disaster response and remote construction support, the 55-meter Landing Craft delivers strength, scale, and certainty. At CSA Marine, we design for the real world — and this vessel is built to meet it head-on.

Technical Specifications

General

Length: 55.00 m
Beam: 10.00 m
Draft: 2.00 m
Complement: 14 person
Class: Rina / Inland Vessel
Class Notation: C, HULL, MACH, MON, P, GENERAL CARGO SHIP, OCEAN GOING
Speed: 12 knots
Passenger: 150 pax

Deck Particular

Ramp: 7.0 m (Length) × 5.5 m (Breadth) Electric Winch Driving
Container Capacity: 18 TEU
Anchor Windlass: 5 Ton, 9 m/min

Others

Oily Water Treatment: 1 m³/hr H₂O
Sewage Treatment Plant: 4 m³
Life Saving Equipment: Solas Standard
Fire Fighting Equipment: Solas Standard

Main Equipment

Main Engine: 2 × Cummins K-38
Total Power: 2 × 850 HP
Propeller: 2 × 1.2 m with Kort Nozzle
Gearbox: Reintjes
Generator: 2 × 100 kW (Cummins 6CT8.3)
Emergency Generator: 1 × 40 kW (Kirloskar/John Deer)
Bow Thruster: 1 × 110 kW (Hydro Master)

Steel Thickness

Keel Plate: 12 mm
Bottom Plate: 12 mm
Double Bottom: 10 mm
Main Deck: 10 mm
Hull Plate: 12 mm
Bilge Plate: 8 mm
Shell: 10 mm
Transom: 8 mm
Bulwark: 8 mm
Tank Top: 8 mm
Navigation Deck: 8 mm

Pumps

Emergency Fire Pump: 1 × 25 m³
L.O. Transfer Pump: 1 pc
Ballast Pump: 2 × 50 m³
Fuel Oil Transfer Pump: 2 × 5 m³
Dirty Oil Pump: 2 × 2 m³
Fire Pump: 1 × 25 m³

Navigation & Communication Equipment

1 × Magnetic Compass: 6” (Daiko Keiki SR2-150 PK)
2 × Radar Sets (X-Band): FURUNO 1518
1 × Sea Map
2 × Binoculars
1 × Clear View Screen
1 × GPS Satellite: FURUNO GP-39
1 × GPS Plotter: SAMYUNG N700
1 × Echo Sounder: FURUNO FCV-688
1 × Navtex: FURUNO NX-300
1 × Inmarsat C: FURUNO FALCOM 18
1 × AIS Class A: SAMYUNG SAS-70
1 × Autopilot Set
1 × SSB Radio
2 × VHF Radio Sets
6 × Two-Way VHF Radio Telephones / Portable Transceivers
1 × Intercom Set (6 units)
1 × Sound Powered Telephone Set

How do we build together?

At CSA Marine, we can build your vessels at our own facilities with precision and efficiency. However, if your operational strategy or budget calls for local construction, we’re here to help. Our team is fully equipped to support vessel production at your preferred location, offering technical expertise, on-site assistance, and tailored co-production models. With a proven track record of international collaboration, we deliver flexible solutions that fit your specific needs.
